| 产品特性：阻火 | 加工定制：是 | 类型：储罐阻火器 |
| 品牌：莱恩 | 型号：LAINE | 材质：不锈钢 |
| 口径：DN20-DN300mm | 规格：中型 |

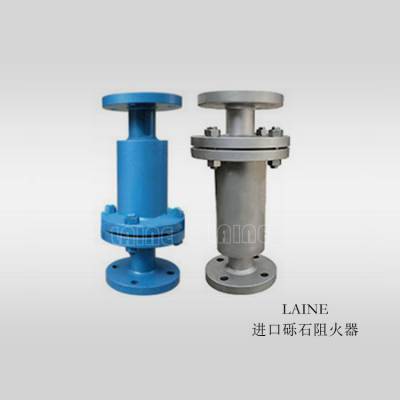

进口砾石阻火器产品描述：
美国《LAINE》莱恩--进口砾石阻火器”砾石阻火器（又名防火器），阻火器的作用是防止外部火焰窜入存有易燃易爆气体的设备、管道内或阻止火焰在设备、管道间蔓延。用于安装原油、汽油、煤油、柴油、芳烃、硫等各类油品或其它化工物料的固定顶式储罐上,通常与机械呼吸阀配套使用,其主要功能是允许易燃爆气体通过、对外界传入储罐的火焰起有阻止窒息的作用。管道阻火器可以在高寒地区低温条件下使用的特点，它可以与通气管配套或单独使用。
American Laine Lane imported gravel flame arrester gravel flame arrester (also known as fire extinguisher), the role of flame arrester is to prevent the external flame from escaping into the equipment and pipeline containing flammable and explosive gases or prevent the flame from spreading between the equipment and pipeline. It is used for the installation of fixed roof tanks for crude oil, gasoline, kerosene, diesel oil, aromatics, sulfur and other oil products or other chemical materials. It is usually used together with mechanical breathing valve. Its main function is to allow flammable and explosive gases to pass through and prevent smothering the flame from the outside. The pipeline flame arrester can be used under the condition of low temperature in high and cold areas. It can be used with ventilation pipe or alone.
进口砾石阻火器性能参数：
通径范围：DN20-DN300mm
压力范围：1.6Mpa
执行标准：GB13347-92《石油气体砾石阻火器阻火性能和试验办法》、SH/T3413-99《石油化工石油气管道组获取选用、检验及验收》、HG/T20570.19-95《阻火器的设置》。
进口砾石阻火器结构特点：
1、阻爆性能合格，连续13次阻爆性能试验每次均能阻火。
2、耐烧性能合格，耐烧试验1小时无回火现象。
3、壳体水压试验合格。本产品结构合理，重量轻、耐腐蚀。易检修，安装方便。阻火器芯子采用不锈钢材料, 耐腐蚀易于清洗
