| 产品特性：阻火 | 加工定制：是 | 类型：储罐阻火器 |
| 品牌：莱恩 | 型号：LAINE | 材质：不锈钢 |
| 口径：DN50-DN500mm | 规格：中型 |

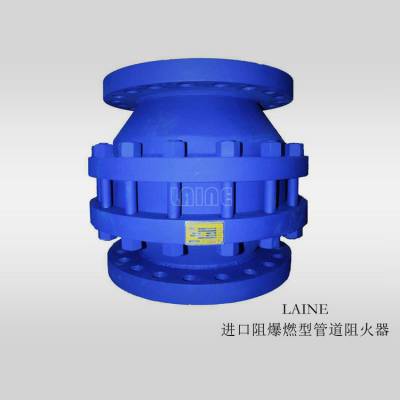

进口阻爆燃型阻火器产品描述：
美国《LAINE》莱恩--进口阻爆燃型阻火器是用于阻止火焰以亚音速通过的阻火器。阻火器是一种适用于封闭空间开口处或管道中的安全设备，其允许流体通过的同时，又能阻止因回火而引起火焰向管道传播、蔓延。主要由阻火层、壳体、垫片、连接件组成。实现阻火器阻火性能的核心是阻火元件，由不锈钢平面钢带和波纹带相互缠绕而成。按照不同的设计要求，阻火元件的直径、数量及三角形孔隙的直径各不相同。
Laine imported flame arrester is a kind of flame arrester used to prevent flame from passing through subsonic. Flame arrester is a kind of safety equipment which is suitable for the opening of closed space or pipeline. It can not only allow the fluid to pass through, but also prevent the flame from spreading to the pipeline due to tempering. It is mainly composed of fire resisting layer, shell, gasket and connector. The core of fire arrestor is fire arrestor, which is made of stainless steel flat strip and corrugated strip. According to different design requirements, the diameter and number of fire retardant elements and the diameter of triangular pores are different.
进口阻爆燃型阻火器性能参数：
通径范围：DN50-DN500mm
温度范围：-20℃≈300℃
压力范围：PN16-PN40
阀体材质：WCB/SS304/SS316
阻火网材质：SS304/SS316
阻火芯材质：SS304/SS316
连接方式：法兰式连接
进口阻爆燃型阻火器结构特点：
1、输送可燃性气体的管道上。
2、火炬系统。
3、油气回收系统。
4、加热炉燃料气的管网上。
5、气体净化通化系统。
6、气体分析系统。
7、煤矿瓦斯排放系统。主要性能1、阻火器连续13次以亚音速火焰试验，每次都能阻止火焰的通过。
