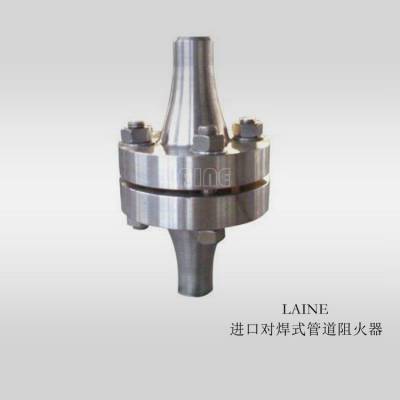

进口对焊式管道阻火器产品描述：

美国《LAINE》莱恩--进口对焊式管道阻火器是适用于石化、化工、轻工等行业的可燃气体运输过程中的安全装置。阻火器有阀体和芯件两部分组成。通过芯件来阻止火焰在管道内蔓延，其原理为“器壁效应”，就是火焰与器壁的碰撞进行能量转换，减低了温度，使其在芯件中熄灭避免了火焰在芯件的另一端复燃。是用来阻止易燃气体和易燃液体蒸汽的火焰向外蔓延的安全装置。设计阻火内件时，是根据不同混合气体的介质、气体的组分、压力降、长径比、弯头数量来设计MESG值并达到一定阻火速度值的有规则填料。当火焰进入阻火器后，被有规则的阻火元件切割成许多细小的火焰流，由于传热的作用和器壁效应，进入的气体被冷却，使冷却的气体达不到着火温度，没有着火温度就不能形成燃烧，终使火焰流猝灭，从而达到阻火目的。

Laine imported butt welding pipeline flame arrester is a safety device for combustible gas transportation in petrochemical, chemical, light industry and other industries. The flame arrester consists of valve body and core. Through the core to prevent the flame spreading in the pipeline, its principle is "wall effect", that is, the collision between the flame and the wall carries out energy conversion, reduces the temperature, makes it extinguish in the core, and avoids the flame re ignition at the other end of the core. It is a safety device used to prevent the flame of flammable gas and flammable liquid vapor from spreading outward. The design of fire retardant internals is based on the medium of different gas mixture, gas composition, pressure drop, length diameter ratio and elbow number to design MESG value and achieve a certain fire retardant speed value of regular packing. When the flame enters the flame arrester, it is cut into many small flame streams by regular flame arresters. Due to the effect of heat transfer and wall effect, the entering gas is cooled, so that the cooled gas can not reach the ignition temperature. Without the ignition temperature, it can not form combustion, and finally the flame stream is quenched, so as to achieve the purpose of fire resistance.

进口对焊式管道阻火器性能参数：

1、通径范围：DN15-DN500mm

2、压力范围：1.0Mpa-4.0Mpa

3、适用温度：-20℃~425℃

4、连接方式：焊接连接

5、阀体材质：铸钢、碳钢、不锈钢

6、适用介质：甲类、油品、氢氧液化类和闪点低于60℃的mei油、chai油、甲笨原油等

进口对焊式管道阻火器结构特点：

1耐烧性能合格，耐烧试验1小时无回火现象。

2阻爆性能合格,阻火器连续13次以亚音速火焰试验，每次都能阻止火焰的通过。

3壳体水压试验合格，水压试验2.4MPa无渗漏。结构合理，重量轻、耐腐蚀。

4阻火器芯子采用不锈钢材料, 耐腐蚀易于清洗。

进口对焊式管道阻火器场合应用：

1输送可燃性气体的管道上。

2火炬系统。

3油气回收系统。

4加热炉燃料气的管网上。

5气体净化通化系统。

6气体分析系统。

7煤矿瓦斯排放系统。

8乙炔、系统。
